X-Ray Inspection Porosity Analysis Sample

3D Image-Based Defect Analysis

CT makes it possible for a test sample to be represented as a 3 dimensional object with all internal information included—enabling precise analysis of the position, size and frequency of defects.

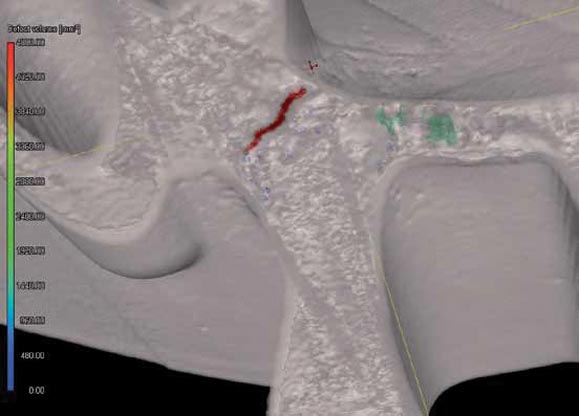

industrial CT scan example image used for defect analysis


Dimensional Measurement

sample dimensional measurement industrial CT scan example

The volumetric data acquired contains geometric information for the entire specimen—perfect for performing dimensional inspection of component structures not visible from the outside or difficult to access.


Nominal/Actual Comparison

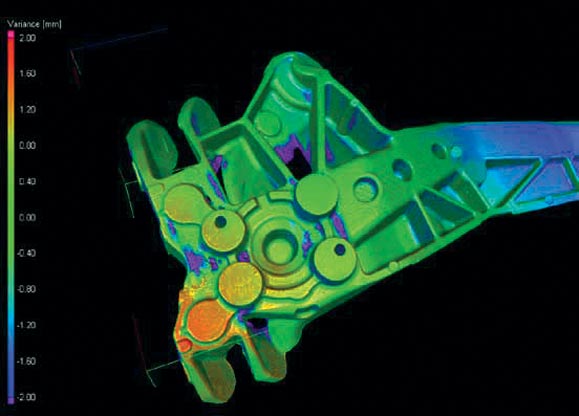

example of nominal-actual industrial CT scan

CT technology can be used to capture internal component structures and generate Voxel surface data from them—allowing comparison with the original CAD data from the component.


Reverse Engineering

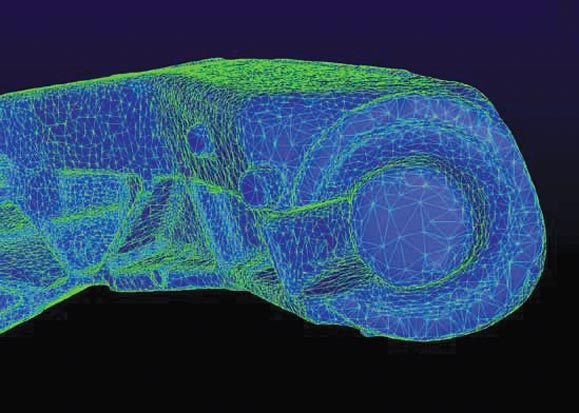

CT scan example showing a reverse engineering image

CT data can be used for the non-destructive recovery of component geometry data—with dedicated software then being used to reimport the surface generated back into a CAD model.


X-ray Inspection

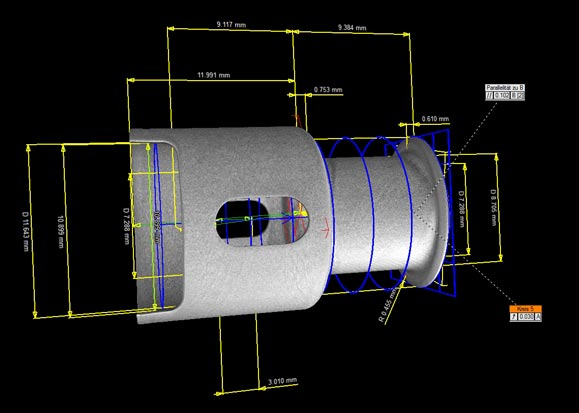

industrial x-ray inspection example from a piston

Industrial X-Ray Example

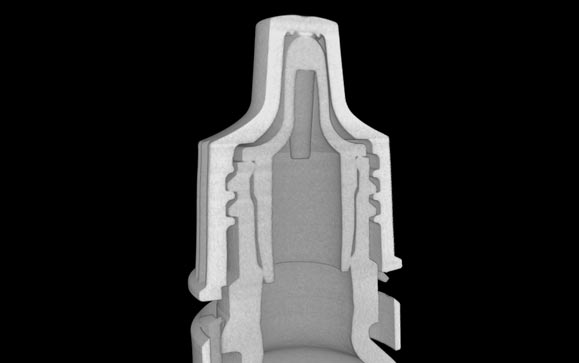

industrial x-ray inspection example

X-ray inspection or industrial imaging systems are quickly emerging as an essential tool in testing applications; an integral part of quality control due to their ability to non-intrusively detect defects, inconsistencies and contaminants in products.


An Inside Look

We recently completed a CT Scanning project involving an aluminum casting measuring approximately 12” x 6” x 6” and weighing 10 to 15 pounds. For this particular job, the client was interested in wall thickness inspection as well as porosity and void analysis.

The blue paint you’ll see in one of the images here was applied by the customer to indicate stress areas where leaking or breaking was suspected. Our scans [we did three, each taking only about one half hour] show the voids [legitimate holes] and highlight the most serious problem areas in red-to-pink shades in the accompanying image below.

analysis of the inside of a part using industrial CT scanning

The work piece [casting] was rotated 360 degrees in the x-ray beam’s path with multiple readings from various angles being taken. Once the CT grey scale images were converted into voxel-based 3D point clouds we were able to generate a CAD-to-Part comparison for the customer.

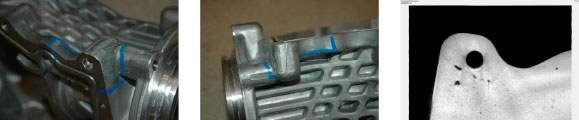

more industrial ct scanning examples
