Reverse Engineering uses different forms of 3D scanning to create a CAD model where no model exists. 3D scanners, portable CMMs and laser trackers are used for other reverse engineering solutions beyond models including process optimization, full dimensional part inspections, part analysis, tool building, prototyping, and assembly integration.LEARN MORE

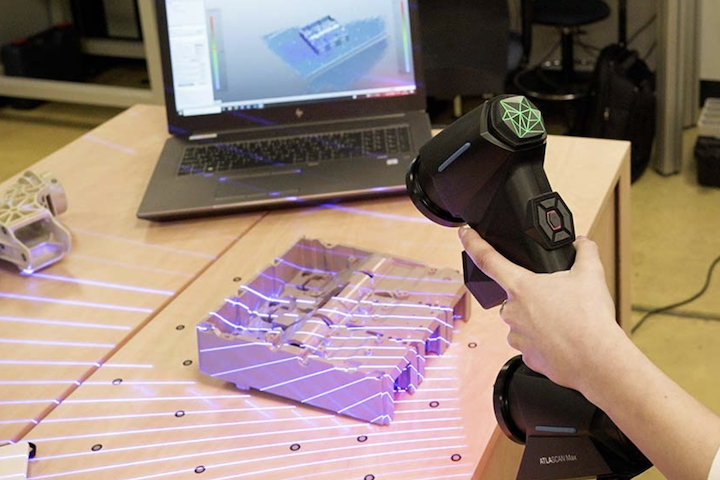

Exact Metrology selects the right scanning technology that delivers the accuracy, speed and resolution needed for your application. Our non-contact 3D scanning tools are grouped in the short-range measurement technology class. Each of these technologies is portable, so we can bring the scanning services to you. When your parts demand a longer range than 20 feet, we will roll out our 3D long range scanning and PCMM solutions that grab measurements at 30, 100, 500 and 900 feet.LEARN MORE
The 3D measurement data from our scanners and PCMMs offers a comprehensive definition of a physical object that is used for measurement, inspection, comparison and reporting. When a part is defined by millions of points, you can see subtle deviations, slight variations and fine details to verify that a part (or mold) meets specifications. Exact Metrology delivers the best of both worlds. We combine 3D scanning with our contact, touch-probe measurement tools to deliver precise dimensions on geometric shapes.LEARN MORE
This technology is used for Internal Defect Analysis/3D Quantitative Porosity Analysis, Materials Structural Analysis or Assembly Control. It’s the only method to get 3D views of the inside of a part [like the aluminum casting at left] and the only way to obtain true dimensional data non-destructively.LEARN MORE
Exact Metrology, Inc. is a full service exact laser measurement company. In addition to selling CT Scanners and performing CT contract services on-site or in-house, we provide contact (Probing & Digitizing) and non-contact (3D Scanning) measurement, on-site inspection, and reverse engineering technologies. Our complete range of portable Coordinate Measurement Machines (CMMs) and scanning equipment allows us to handle most measurement tasks at your facility. Once the measurements are complete, our team of technicians will convert and output the raw data into the model, report, image, animation or whatever deliverable best gives you the answers and results you need.
We also rent metrology equipment solutions, and offer software training.
Here at Exact Metrology we’re always at the forefront of leading 3D Laser Scanning, 3D X-ray Scanning and Industrial CT Scanning technology. We perform these services in-house and on-site and very often the projects are interesting and the results informative. In this News Section we will attempt to share what we feel you’ll enjoy.
Using a white light 3D scanner, a high level of detail was captured on the this Christmas Tree Ornament.
File Formats: STL
Approximately 3” in height, this small airfoil from a jet engine was scanned using our Breuckmann smartSCAN 1.4 megapixel camera.
Metal stamping roughly 1’’ square. Clamp was scanned with our Breuckmann whitelight system. Provided examples are “as-is” NURBS models.
Injection molded Gear that was scanned with our Breuckmann whitelight system. Provided examples are “as-is” NURBS models.
This gun example is to show the photo overlay capabilities using our laser based systems.
File Formats: 3D PDF
This was scanned with Breuckmann technology. It was a small field of of view for high detail resolution.
File Formats: 3D PDF
