ENTRY-LEVEL MEASUREMENT ACCURACY

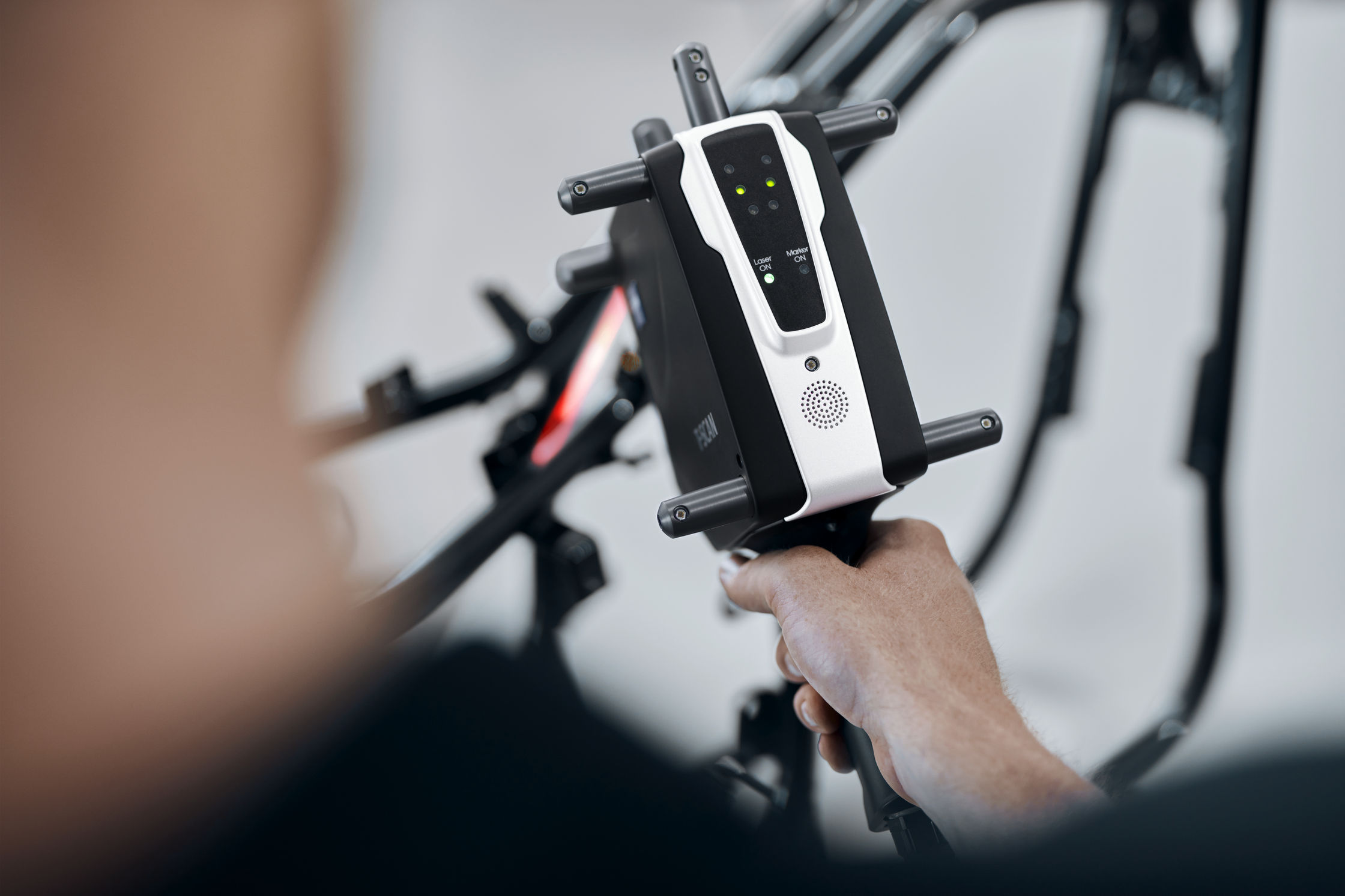

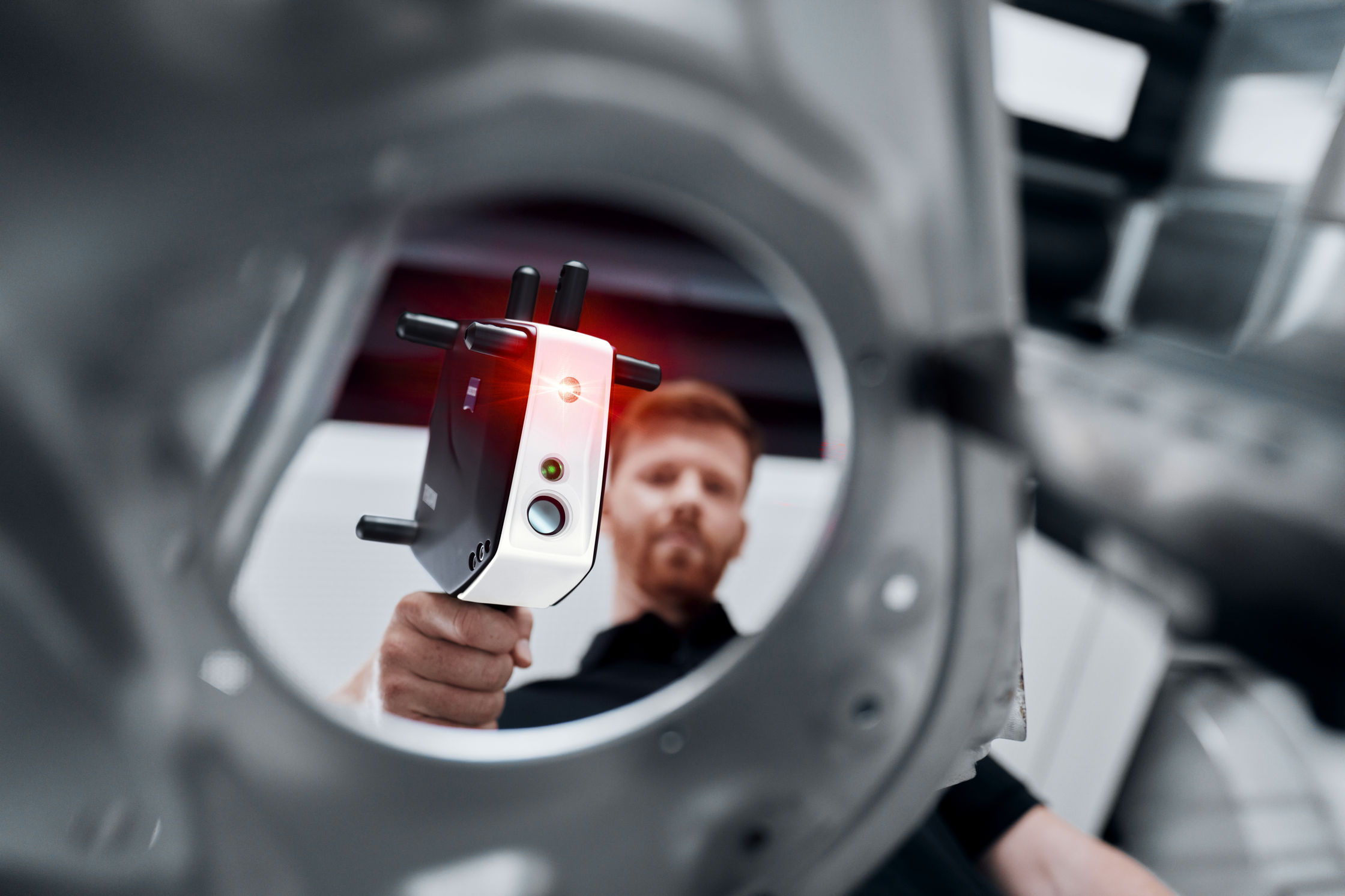

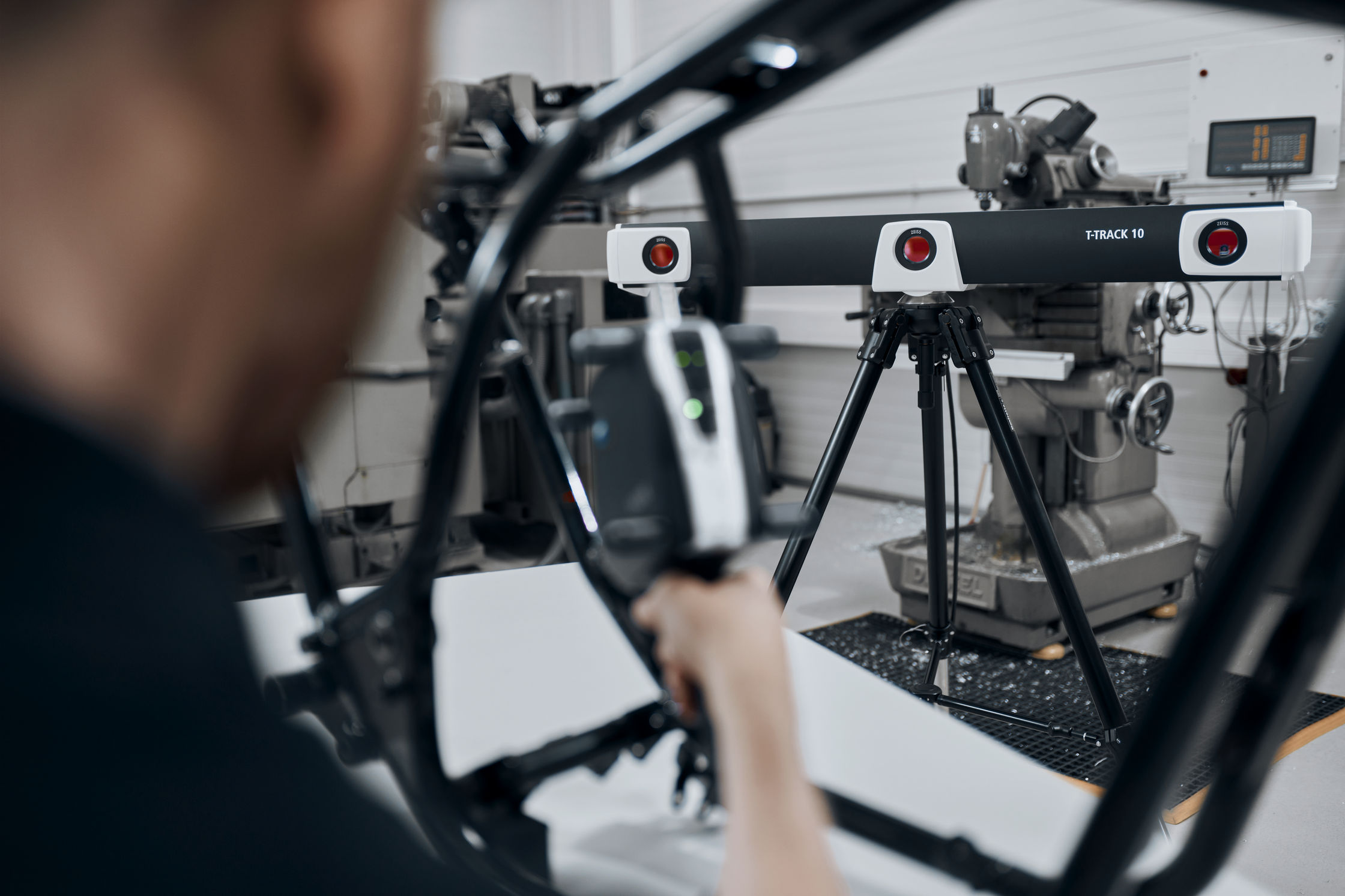

Combine the handheld T-SCAN laser scanner with the ZEISS T-TRACK Optical System to quickly capture individual measuring positions. This modular all-in-one laser scanner solution is capable of offering flexibility for a wide variety of industries, applications, and surfaces. The T-SCAN measuring solution is meant for shop floor use, quickly measuring component parts at your fingertips.
Not Ready to Buy? Learn More About Our 3D Scanning Services
Request a Quote
Software that gets the job done
The ZEISS (GOM) Inspect software is used in product development, quality control and production. Use this software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
Software that gets the job done
The ZEISS (GOM) Inspect software is used in product development, quality control and production. Use this software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
Technical Specifications
- Measurement Depth | +/- 50 mm
- Line Width | Up to 125 mm
- Mean Working Distance | 150 mm
- Line Frequency | Up to 330 Hz
- Data Rate | 210,000 points/second
- Weight | 1100 g
- Sensor Dimensions (incl. handle and IR pins) | 300 x 170 x 150 mm
- Cable Length | 10 m
- Mean Point Distance | 0.075mm
- Laser class (IEC 60825-1:2014) | Class 2M (eye-safe)
- Software | GOM Inspect
