FLEXIBLE, EFFICIENT, AUTOMATED

The GOM ScanCobot is a mobile measuring station with a collaborative robot, a motorized rotation table and advanced software. When operating the ATOS 3D scanner, the sensor must face the part from different directions. The GOM ScanCobot uses a collaborative robot to perform this typically manual working process. Paired with a motorized rotation table, the robot can move along the sensor positions very quickly one after the other. This efficient addition to the typical manual scanning process speeds up inspection time.

  • USED WITH THE ATOS Q and ATOS CORE

  • USER FRIENDLY ENTRY-LEVEL SOLUTION

  • HIGH-PRECISION MEASUREMENT

Not Ready to Buy? Learn More About Our 3D Scanning Services

Request a Quote

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

Achieving Quality Excellence Together

The ZEISS (GOM) ScanCobot combines the precise optical ATOS Q 3D scanner with a collaborative robot and a motorized rotation table.

Achieving Quality Excellence Together

The ZEISS (GOM) ScanCobot combines the precise optical ATOS Q 3D scanner with a collaborative robot and a motorized rotation table.

Safety

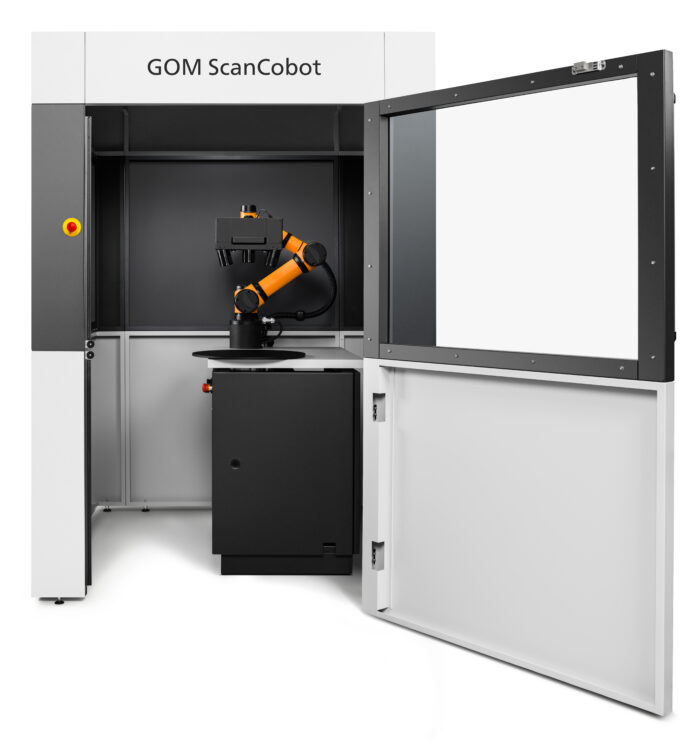

GOM ScanCobot is a mobile measuring station that can easily and quickly be moved from one location to another. Only a standard socket is required for commissioning. The system can be equipped with a standardized safety housing to comply with market-specific safety regulations.

Technical Specifications

  • Dimensions Footprint [mm] | 975 x 775
  • Working Height [mm] | 1000
  • Power Supply | Standard, 100-240 V (1-phase, 16A)
  • Max. Part Size [diameter in mm] | 500
  • Max. Part Weight [kg] | 50
  • Sensor Compatibility | ATOS Q, ATOS Core
