FOR PRECISION MEASUREMENTS OF SMALL TO MEDIUM SIZED PARTS

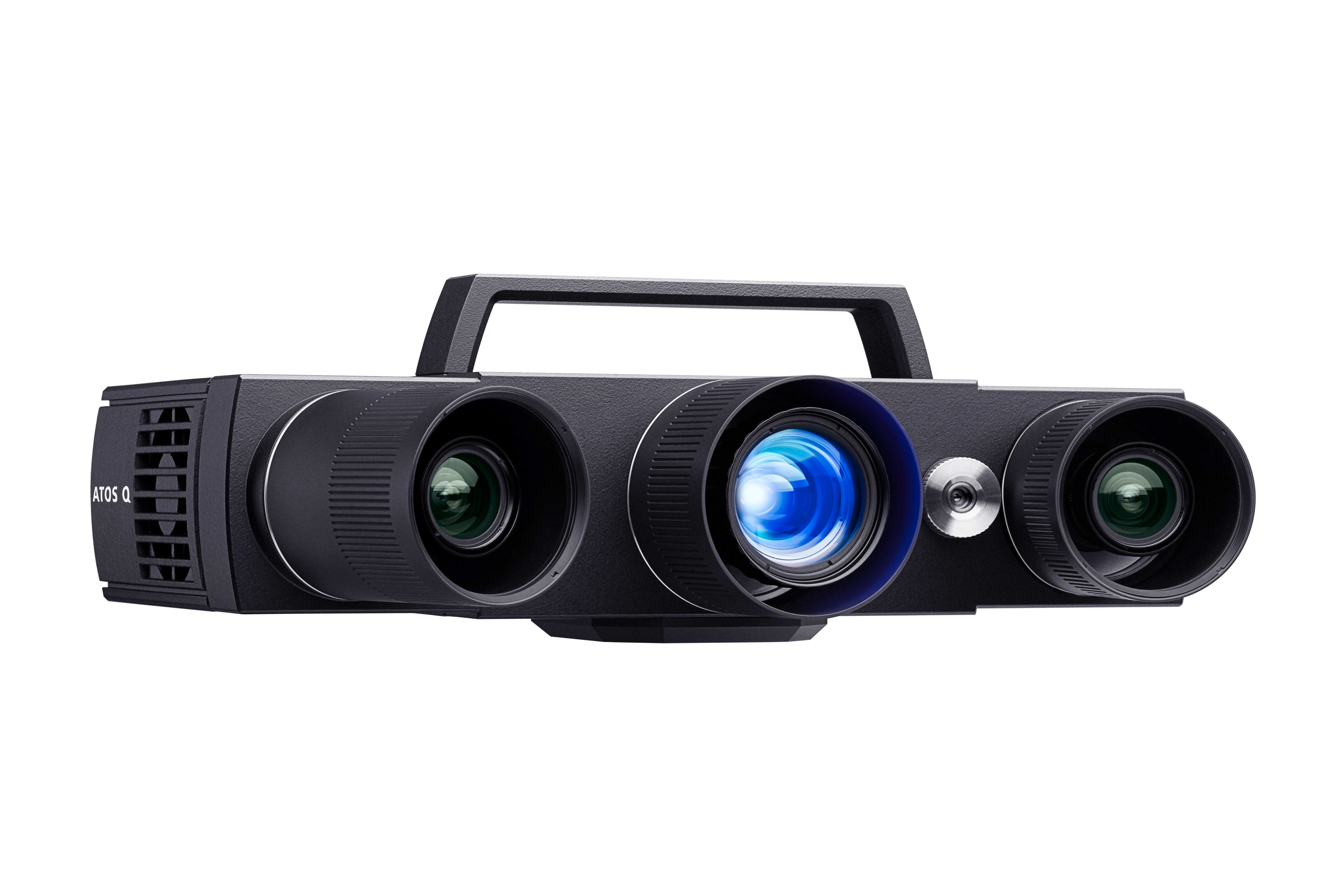

Versatile for every industry in mind, the ATOS Q is designed as a flexible 3D scanner for complex measurement and inspection tasks. This scanner delivers fully traceable measurement results under complex conditions. The optical and electronic systems of the ATOS Q are dust proof and splash proof, making it an ideal partner to take from measurement rooms to on-site operations.
Not Ready to Buy? Learn More About Our 3D Scanning Services
Request a Quote
The Leading Software For ZEISS Measurement Systems

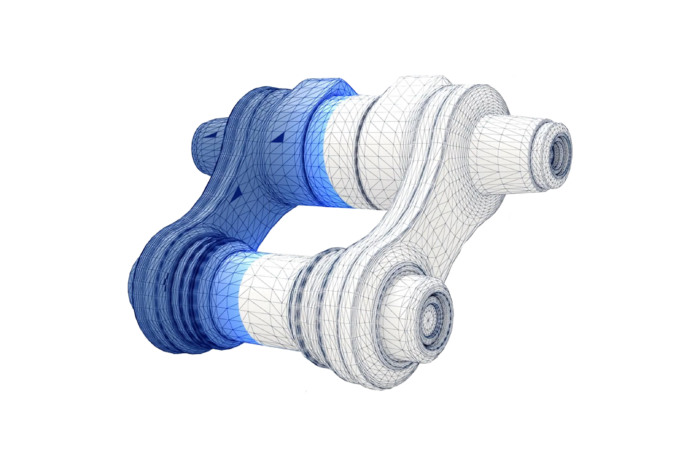

ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
The Leading Software For ZEISS Measurement Systems

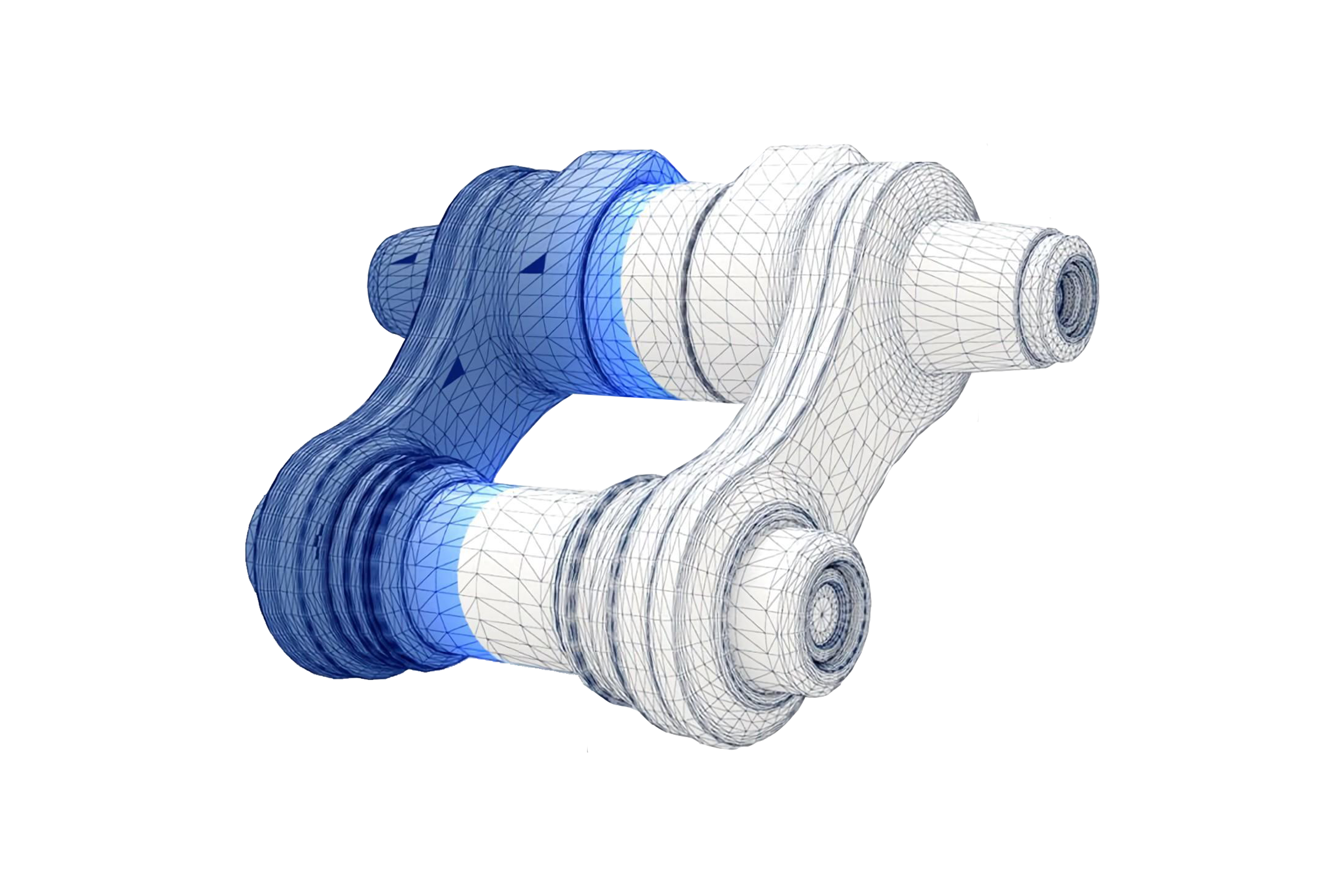

ZEISS INSPECT (formerly GOM Inspect) is the flagship software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.
Technical Specifications - ATOS Q 8M
- Light Source | LED
- Points Per Scan | 8 million
- Measuring Area [mm²] | 100×70– 500×370
- Point Distance [mm] | 0.04-0.15
- Working Distance [mm] | 490
- Weight | approx. 4kg
- Dimensions | approx. 340mm x 240mm x 83mm
- Cable Length | 10 m fiber optic cable
- Operating System | Windows 10
- Measuring Volumes | 100, 170, 27I 0, 350, 500
Technical Specifications - ATOS Q 12M
- Light Source | LED
- Points Per Scan | 12 million
- Measuring Area [mm²] | 100 x 70– 500 x 370
- Point Distance [mm] | 0.03-0.12
- Working Distance [mm] | 490
- Weight | approx. 4kg
- Dimensions | approx. 340mm x 240mm x 83mm
- Cable Length | 10 m fiber optic cable
- Operating System | Windows 10
- Measuring Volumes | 100, 170, 27I 0, 350, 500
