Planning for Precision: How Long-Range Laser Scanning Reduces Risk and Increases Uptime in Nuclear Facilities
Nuclear plant outages leave zero room for error. Every decision must be backed by precise, verified data—and that’s exactly what Exact Metrology delivers. Specializing in nuclear laser scanning and dimensional metrology, we help plant teams capture every detail of critical infrastructure before work begins, ensuring projects run on schedule and within compliance. This article explains how advanced scanning technology is reshaping outage planning from the ground up.

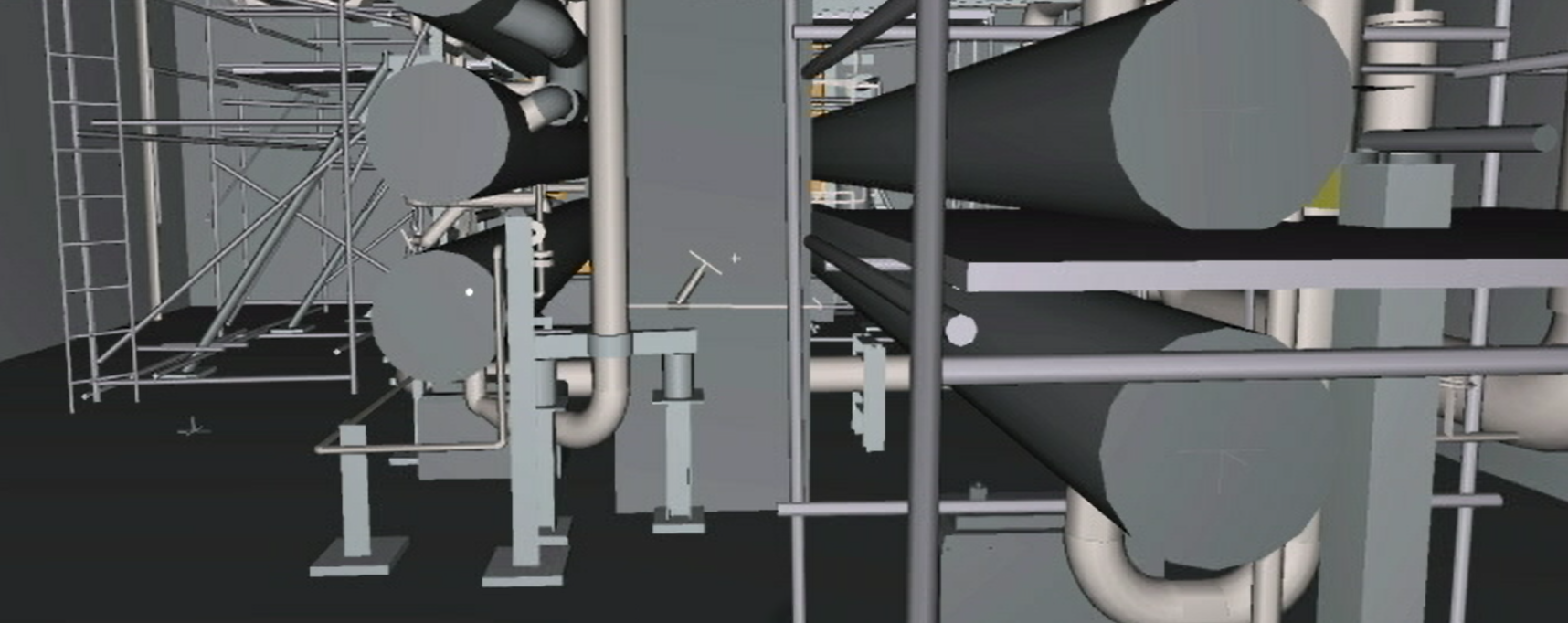

Long-Range Scanning Data Example
In the nuclear power industry, operational runs often span 16 months or longer – evidence of the reliability and discipline that define this sector. But when it’s time for a planned outage, the urgency and complexity increase exponentially. Facilities must complete a wide range of inspections, upgrades, replacements, and regulatory tasks within a tightly controlled window – often just two to four weeks. There is no margin for error, and delays are not just costly; they can turn into compliance risks, safety issues, and grid reliability concerns.
That is why successful outage execution hinges on accurate, early-stage data—and why long-range laser scanning is quickly becoming essential to nuclear plant maintenance strategies.
High-Accuracy Data that Powers Planning
Long-range scanning captures a detailed, spatially accurate digital representation of the plant’s physical environment – everything from surrounding structures and embedded infrastructure to large components like heat exchangers, pumps, and piping systems. Conducted prior to the outage, this high-resolution 3D data allows plant teams and contractors to:
-
Simulate and sequence work digitally
-
Identify clearance conflicts and physical interferences
-
Prefabricate parts with confidence and accuracy
-
Design rigging paths and tooling strategies
-
Validate fit-ups and tolerances long before field execution
In nuclear environments, where tasks are complex, spaces are constrained, and schedules are compressed, eliminating mid-outage surprises isn’t a bonus—it’s a requirement.

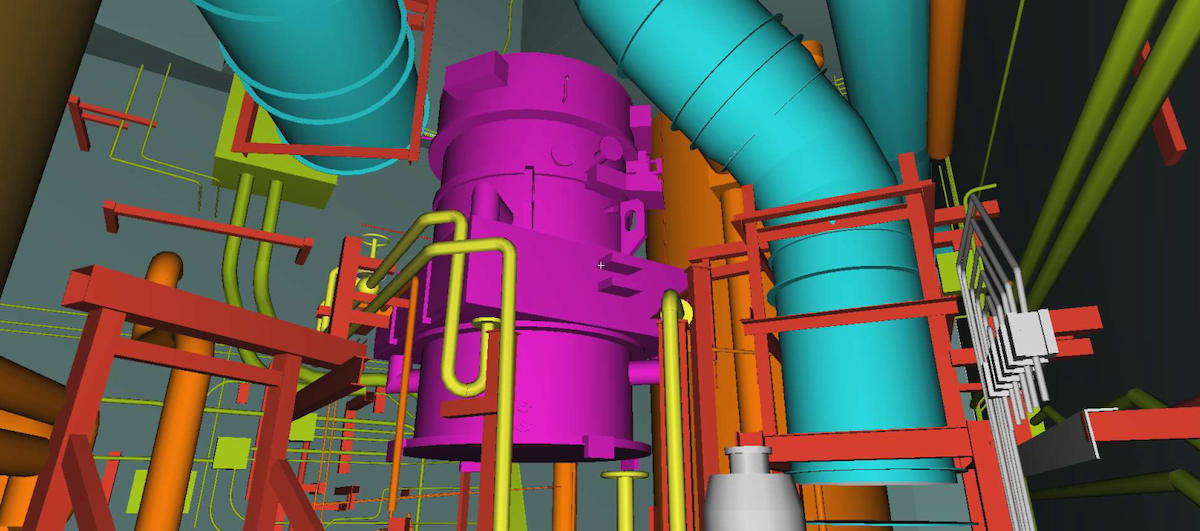

High-Fidelity CAD Models of the Plant Environment

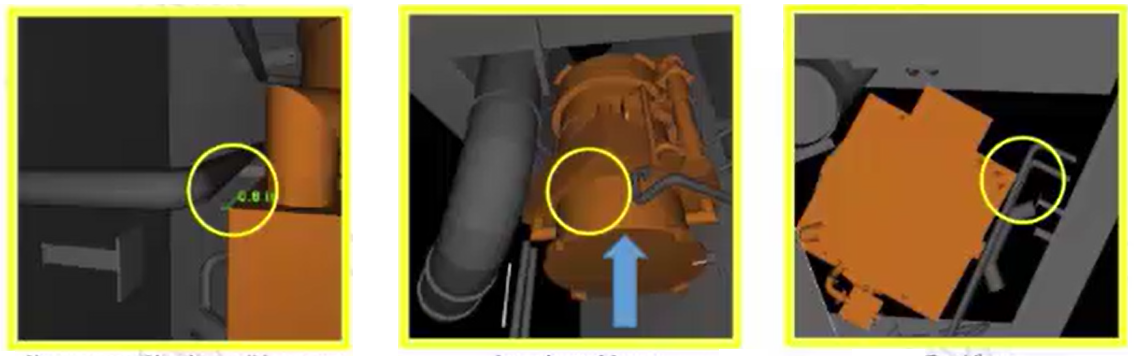

Virtual Fit-Ups: Reduce Risk Before It Starts
One of the most powerful applications of laser scan data is virtual fit-up—digitally verifying that replacement components, tooling, or assemblies will integrate seamlessly with existing conditions. This becomes mission-critical during operations such as reactor coolant pump (RCP) replacements, where clearances are minimal and tolerances are exact. By capturing scan data during a previous outage, engineering teams can:
-
Build high-fidelity CAD models of the plant environment
-
Pre-plan precision alignments and bolting patterns
-
Prefabricate parts with confidence and accuracy
-
Virtually test removal paths and installation procedures
-
Design custom components to real-world geometry
This allows teams to shift from reactive to proactive, increasing certainty in planning and drastically reducing the likelihood of field adjustments that could delay restart.
Supporting ALARA and Compliance Goals
Long-range scanning also contributes to ALARA (As Low As Reasonably Achievable) objectives by reducing the number of personnel entries required for measuring, validating, or inspecting complex systems. Since data can be captured remotely and then shared digitally, planning teams, vendors, and contractors can coordinate off-site—limiting exposure during the outage itself.
The ability to pre-plan based on detailed, validated data also supports regulatory compliance by ensuring that upgrades and modifications proceed without deviation from engineered intent or licensing requirements.

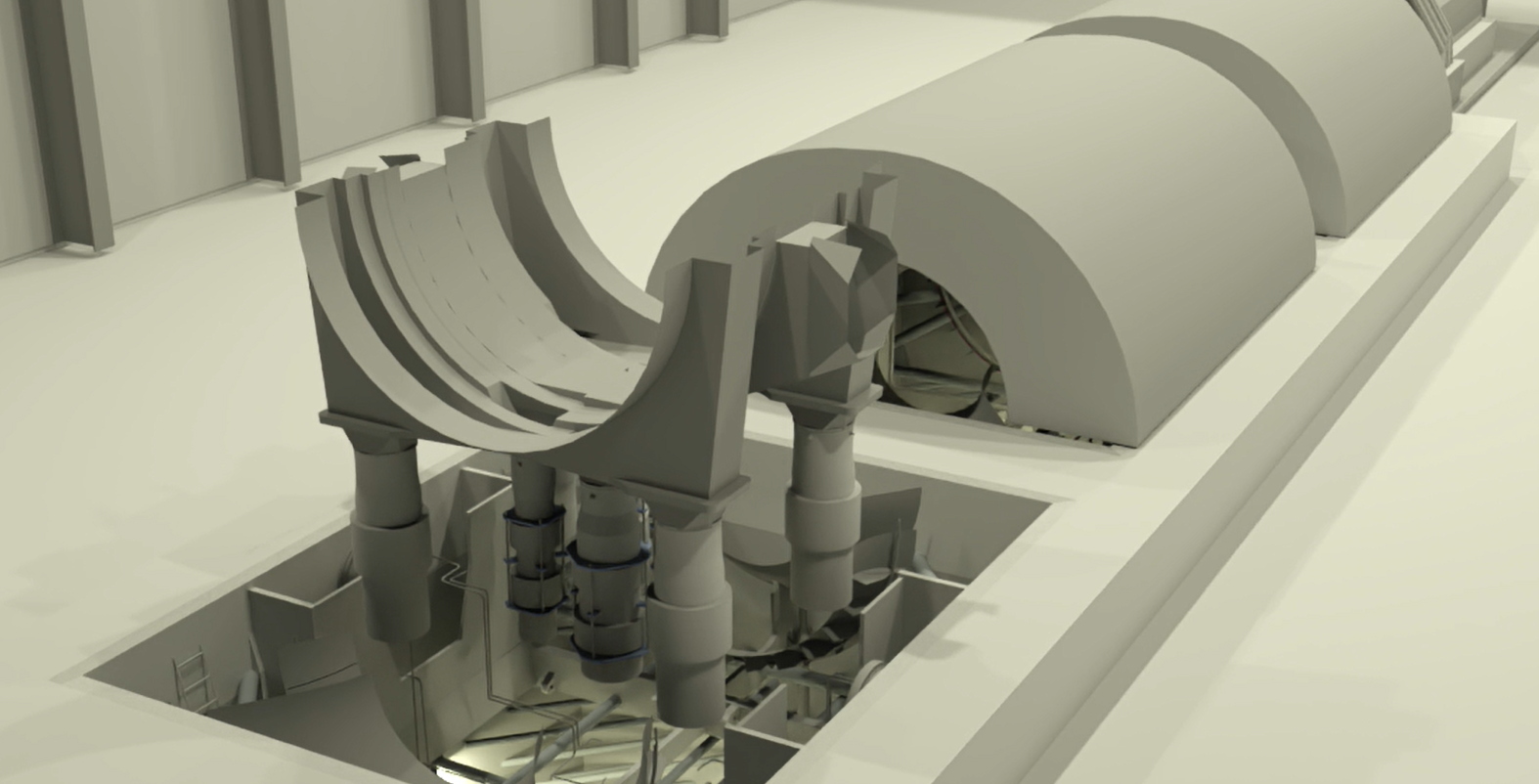

Simulate Future Upgrades and Change-Outs
Building a Living Archive for Long-Term Gains
Scan data isn’t just for a single project. When archived and integrated into the plant’s digital maintenance strategy, it becomes a valuable asset across the entire lifecycle of the facility. Over time, this growing database of as-built information allows teams to:
-
Compare infrastructure conditions across outages
-
Simulate future upgrades and change-outs
-
Accelerate engineering reviews with accurate field data
-
Reduce site visits and redundant measuring activities
Even if no active work is planned, capturing scans during the current outage ensures your team has the most up-to-date model for future use – empowering faster decision-making and higher confidence for what comes next.
Building Digital Maintenance Archive
Why Timing and Expertise Matter
Because outages are so infrequent – and critical – nuclear facilities only get one opportunity every 16+ months to capture this type of data. Miss it, and you’ll be planning the next outage with outdated or incomplete information.
That is why choosing a laser scanning partner with nuclear experience is non-negotiable. Exact Metrology understands the stakes. We mobilize quickly, follow site protocols to the letter, and deliver actionable data that supports nuclear safety, precision, and schedule integrity.
Whether you’re planning an RCP replacement, a heat exchanger change-out, or simply building your digital maintenance archive, we are here to help make your next outage smarter, safer, and more efficient.
