HEXAGON SMARTSCAN VR 800
Simplify your Workflow with Optical 3D Scanning
As a certified Hexagon dealer, we are excited to offer the VR800 — a cutting-edge optical 3D scanner designed to streamline your measurement workflows. Its advanced multi-camera system allows users to capture data from multiple resolutions within a single project, virtually simultaneously. This means faster data acquisition, reduced processing times, and more efficient analysis — giving your team the flexibility and speed needed to stay ahead in today’s demanding environments.
Measure smarter with SmartScan: The unique software functions that power the VR800

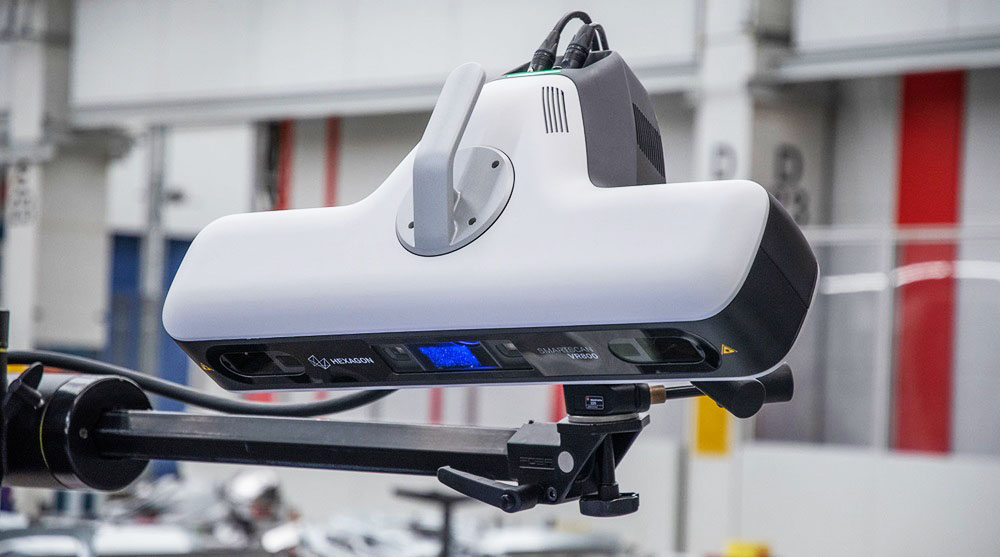

Smart Resolution
- The VR800 Smart Resolution function allows the user to change the data resolution while maintaining a constant measurement volume.
- The user can switch in software between six different settings and combine data in a single project.
- Three resolution options are available for each pair of cameras (5, 12 and 20 MP), delivering an X,Y resolution range of between 238 and 49 microns.

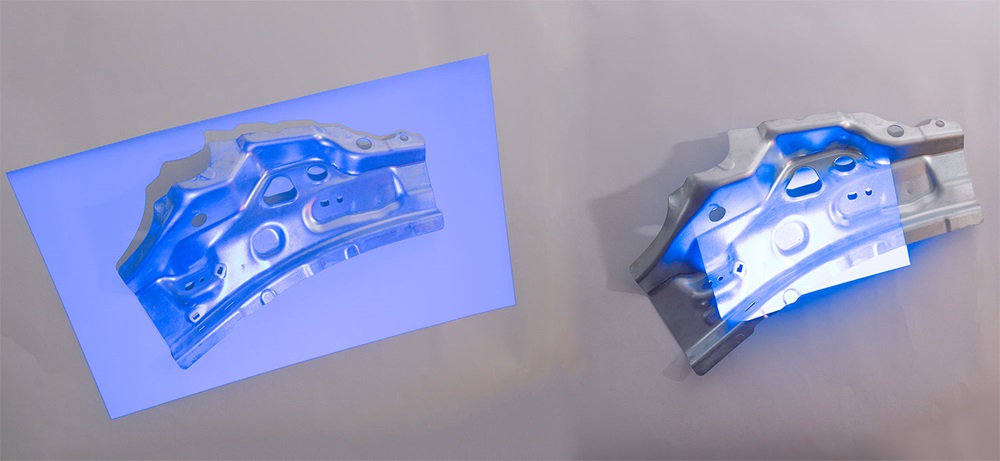

Smart Zoom
- The VR800 Smart Zoom function allows the user to adjust the measurement volume and resolution of the scanner while maintaining 5 million data points for high-speed processing.
- There are six measurement volume options – three for each camera pair. The largest has a diagonal of 800 millimetres, the smallest 160 millimetres – changing between them delivers an X,Y resolution improvement from 238 to 49 microns.
Smart Snap
- The VR800 Smart Snap function puts the multi-camera setup to work in a different way that uses all four digital camera units to simultaneously collect both scan and orientation data.
- Target positions placed outside of the 3D scan area are snapped with support of an LED flash and used for orientation of the 3D scan data collected by the inner camera pair.
- This combination significantly reduces the number of targets required, increases the target measurement volume and at the same time speeds up the whole scanning workflow.
Compatible Metrology Software for High-End Inspection:
Features & Benefits
Meeting user challenges with innovative technology solutions:
Features & Benefits
Meeting user challenges with innovative technology solutions:
A New Way of 3D Scanning
With the groundbreaking ability to adjust data resolution and measurement volume entirely through software settings, the SmartScan VR800 is something entirely new in the world of structured light scanning. These functions can be applied in a variety of workflows, but what they all have in common is the capacity to revolutionize the productivity of optical 3D scanning quality inspection.
A New Way of 3D Scanning
With the groundbreaking ability to adjust data resolution and measurement volume entirely through software settings, the SmartScan VR800 is something entirely new in the world of structured light scanning. These functions can be applied in a variety of workflows, but what they all have in common is the capacity to revolutionize the productivity of optical 3D scanning quality inspection.
Resolution Where You Need It
Thanks to four separate camera units and a mechanical zoom projector, the VR800 has a unique variable resolution and coverage functionality. This allows the level of detail and the size of measurement volume to be selected and seamlessly adjusted within the inspection software in a matter of only seconds, with no need for exchanging optics or recalibration.
Resolution Where You Need It
Thanks to four separate camera units and a mechanical zoom projector, the VR800 has a unique variable resolution and coverage functionality. This allows the level of detail and the size of measurement volume to be selected and seamlessly adjusted within the inspection software in a matter of only seconds, with no need for exchanging optics or recalibration.
Ease of Use to Simplify Workflows
The VR800’s multi-camera setup delivers unprecedented new workflow opportunities that simplify the business of measuring with an optical 3D scanner. The ability to combine different resolutions into a single project with near simultaneous data capture has benefits both in terms of speed of data capture and in processing and analysis.
Ease of Use to Simplify Workflows
The VR800’s multi-camera setup delivers unprecedented new workflow opportunities that simplify the business of measuring with an optical 3D scanner. The ability to combine different resolutions into a single project with near simultaneous data capture has benefits both in terms of speed of data capture and in processing and analysis.
Focus on the Data you Need
As inspection devices have become more and more powerful, the processing of inspection data has become more and more challenging, demanding significant computing resources. With the VR800, the user can define exactly which parts of the inspection object matter most and focus high-resolution scanning solely on those areas. Even scan overlaps are dispensed with thanks for simultaneous alignment image capture.
Focus on the Data you Need
As inspection devices have become more and more powerful, the processing of inspection data has become more and more challenging, demanding significant computing resources. With the VR800, the user can define exactly which parts of the inspection object matter most and focus high-resolution scanning solely on those areas. Even scan overlaps are dispensed with thanks for simultaneous alignment image capture.
