FOR LARGE MEASURING VOLUMES

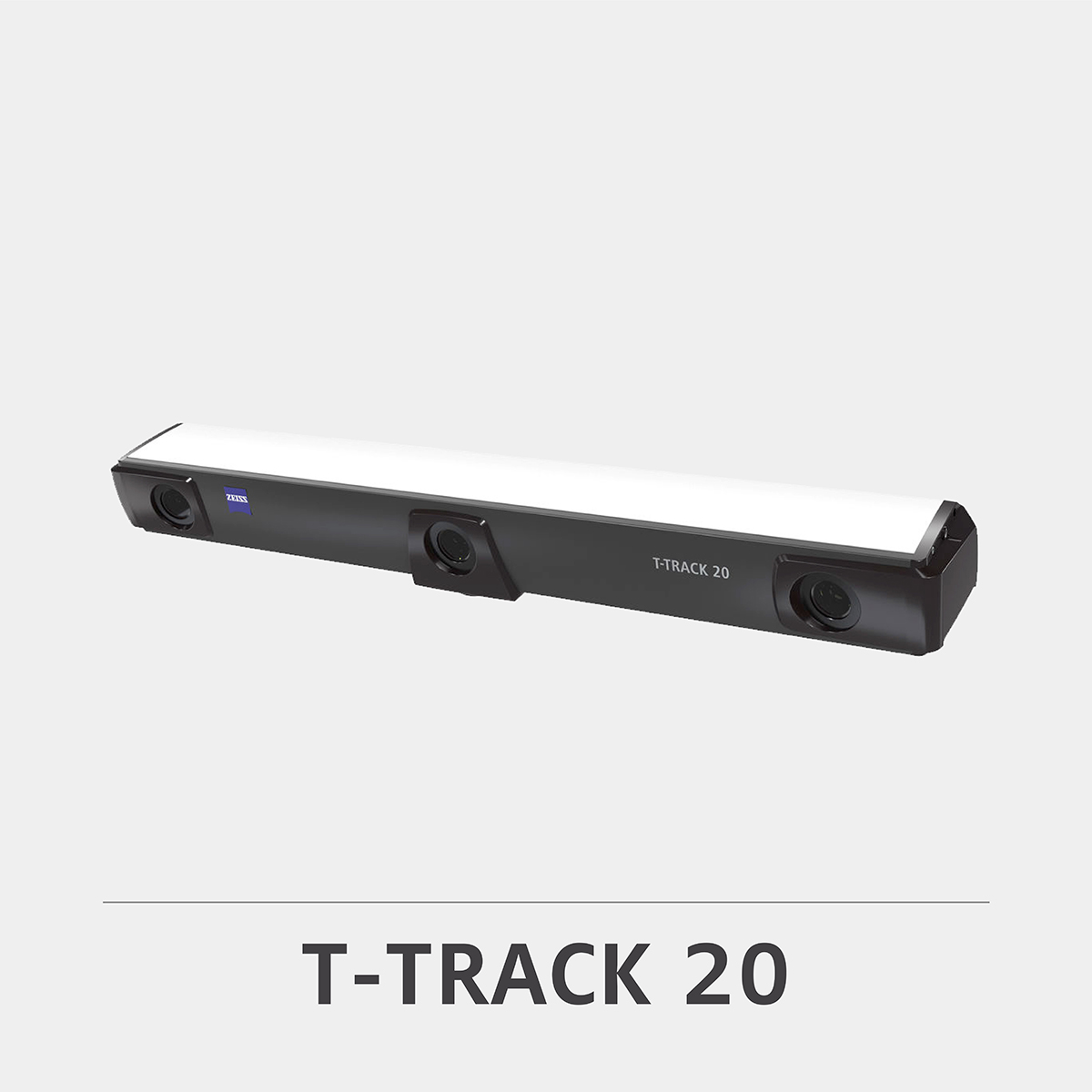

The T-TRACK 20 is perfect for the optical tracking of parts with a larger volume. Combine the handheld T-POINT with this tracking system to quickly capture individual measuring positions. This T-TRACK 20 can be used for a wide range of applications including quality control & inspection, tool & mold making, and product development & design.

  • NOMINAL-ACTUAL CAD-TO-PART COMPARISON

  • GAGE AND FIXTURE SET UP

  • SCAN DATA FOR MACHINING PATH GENERATION

Not Ready to Buy? Learn More About Our 3D Scanning Services

Request a Quote

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.

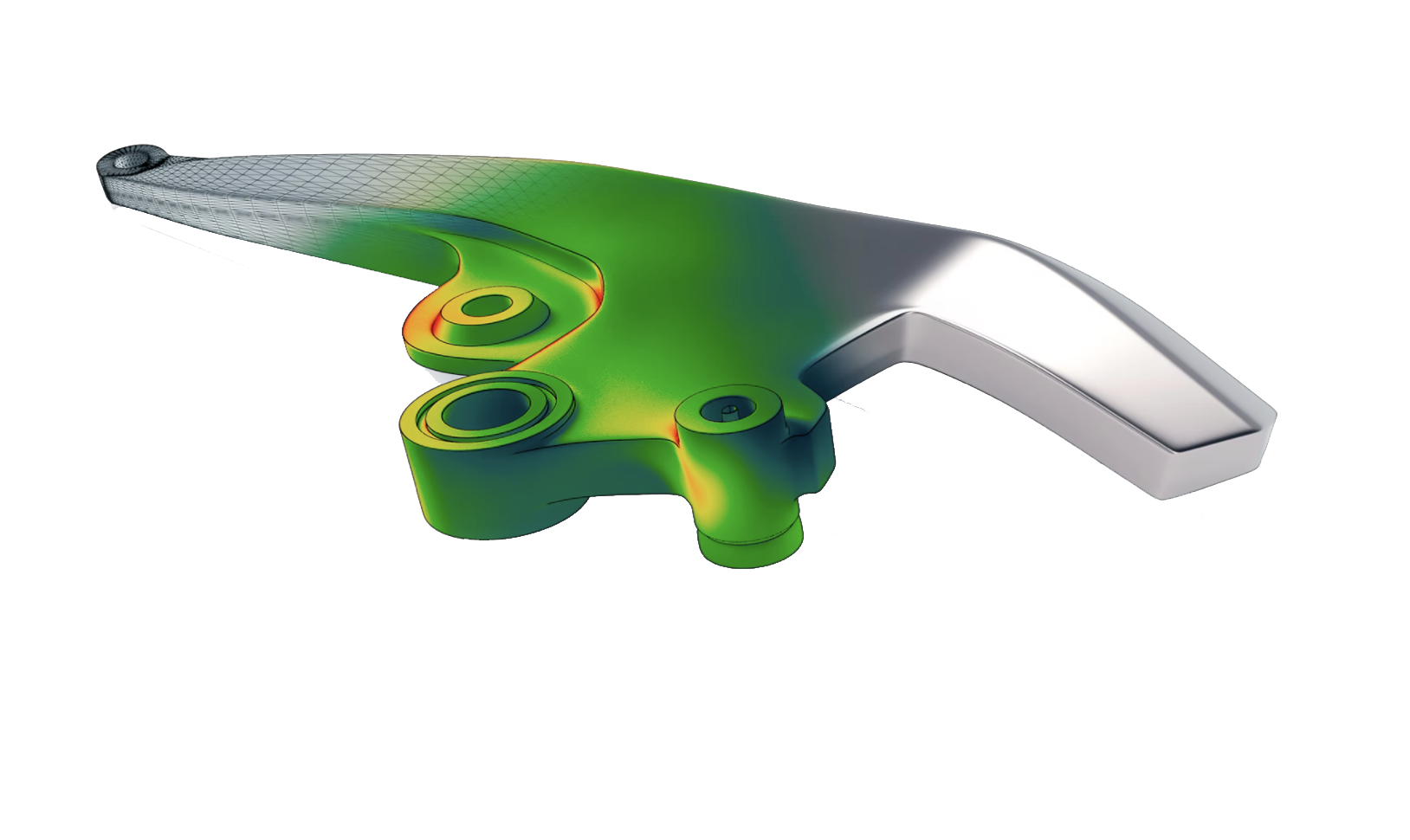

3D Scan Data from ZEISS (GOM) Inspect

Software that gets the job done

The ZEISS (GOM) Inspect software is used in product development, quality control and production. Use this software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.

Learn More
3D Scan Data from ZEISS (GOM) Inspect

Software that gets the job done

The ZEISS (GOM) Inspect software is used in product development, quality control and production. Use this software for simple or complex inspection tasks – from capturing the part to be inspected, mesh processing, CAD import, necessary GD&T calculations to trend analyses, digital assembly or proprietary inspections.

Technical Specifications

  • Measuring distance: object-camera | 2.0 m – 6.0 m
  • Measuring volume | 20 m³
  • Field of view | up to 3200 mm x 2500 mm
  • Measuring rate | up to 2.8 kHz
  • Weight | 18.5 kg
  • Dimensions | 1150 x 180 x 150 mm
  • Software | GOM Inspect
  • Traceable accuracy | Yes
  • Accuracy | 0.04 mm + 0.04 mm/m
