FOR PRECISION MACHINED PARTS

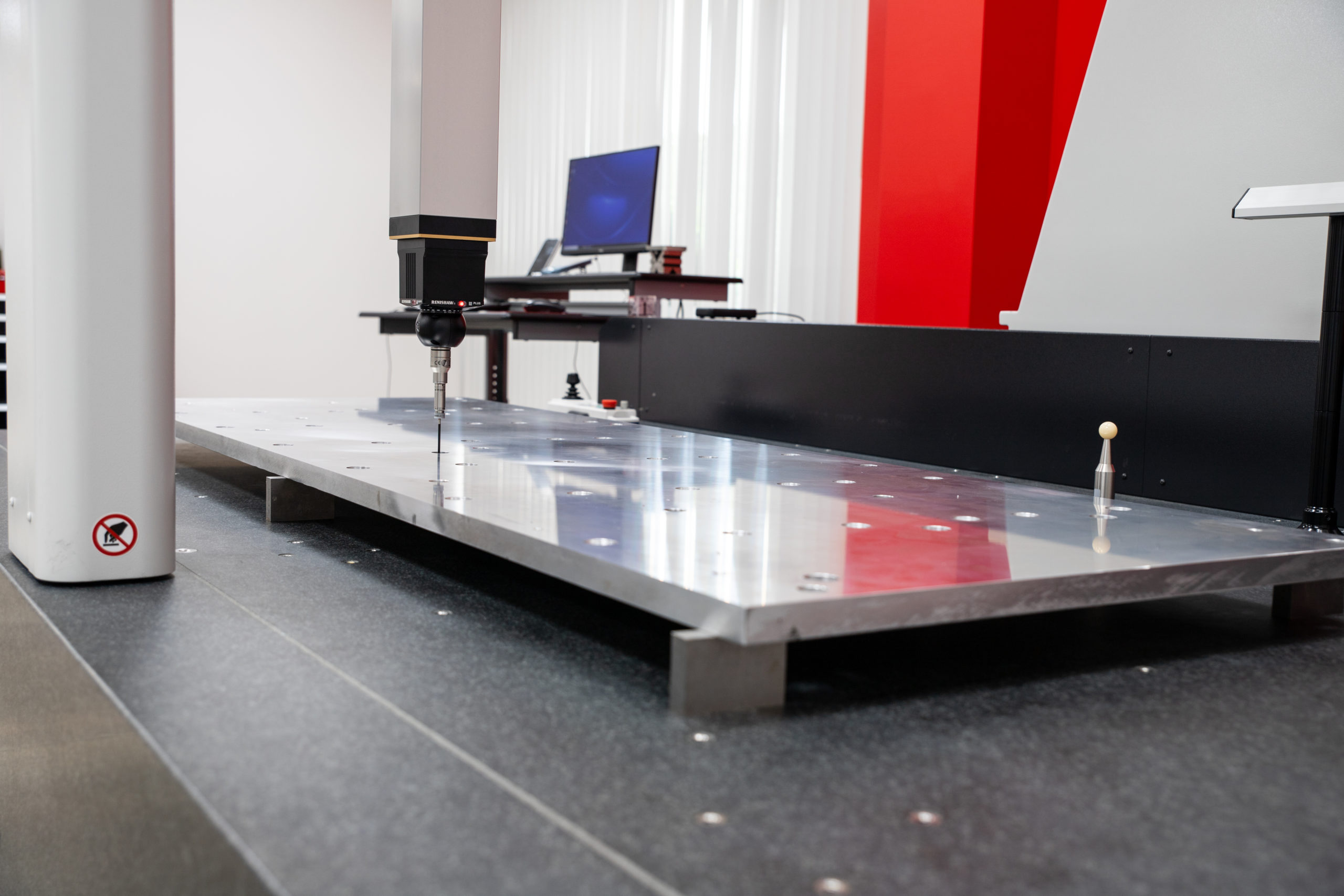

This machine is a high-accuracy CNC coordinate measuring machine that guarantees a maximum permissible error of E0, MPE = (2.5+3L/1000)μm. With this CMM, measurement uncertainty remains within one-fifth of the dimension tolerance up to 30.2″ (766mm). The higher accuracy specification gives it more than double the effective measuring range in terms of accuracy-guarantee capability. Combining high speed and high acceleration, this CMM reduces measuring time. As the number of measuring points increases, measuring costs per point are reduced.

  • COMBINED AXIS SCALE/WORKPIECE TEMPERATURE COMPENSATION

  • MEASURING VOLUME OF 47 INCHES BY 78 INCHES

  • HIGH ACCURACY SPECIFICATION

Not Ready to Buy? Learn More About Our 3D Scanning Services

Request a Quote

Name(Required)
Address(Required)
This field is for validation purposes and should be left unchanged.
Data from PolyWorks | Inspector™

Software that gets the job done

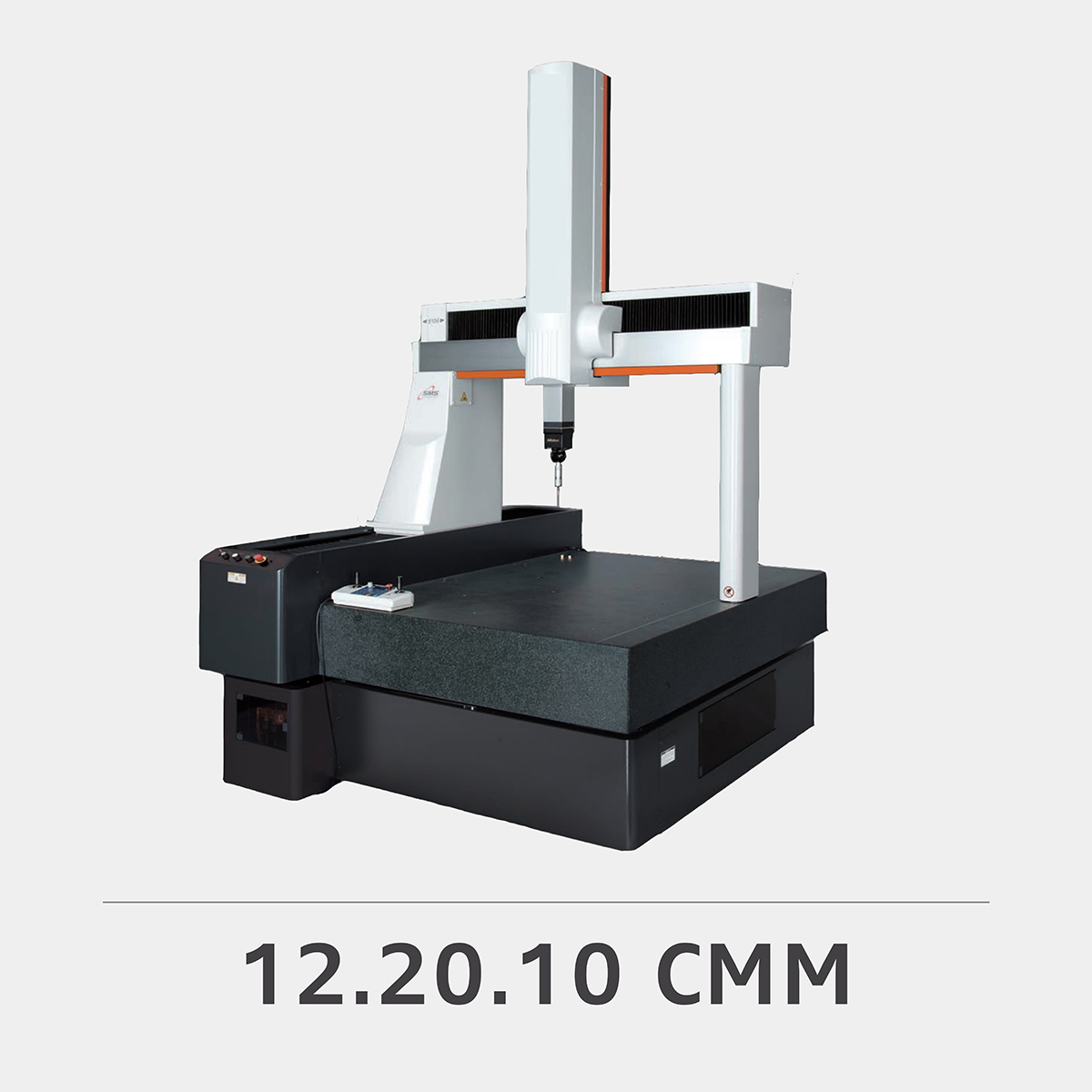

Explore software compatible with the 12.20.10 CMM.

Technical Specifications

  • Measuring Range (X axis) | 47.24” (1200mm)
  • Measuring Range (Y axis) | 78.73” (2000mm)
  • Measuring Range (Z axis) | 39.36” (1000mm)
  • Resolution | 0.000004” (0.0001mm)
  • Guide Method | Air bearings on each axis
  • Drive Speed | 8 – 400 mm/s (CNC mode), max. speed: 693 mm/s; 0 – 80 mm/s (J/S Mode: High Speed); 0 – 3 mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)
  • Max. Measuring Speed | 5 mm/s
  • Max. Drive Acceleration | 1,732 mm/s^2
  • Workpiece (max height) | 47.24” (1200mm)
  • Workpiece (max mass) | 5,551 lbs. (2500kg)
  • Mass (including control device and installation platform) | 13,558 lbs. (6150kg)
  • Air Supply- Pressure | 58 PSI (0.4MPa)
  • Air Supply- Consumption | 100 L/min under normal conditions
  • Air Supply- Air Source | 5.29CFM (150L/min)
